Salient Features: -

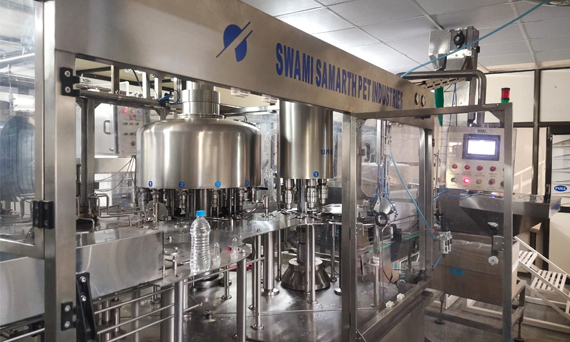

Rotary, monoblock construction having SS 304 with fully neck holding, fully adaptable to all sizes from 200 to 2000 ml. No bottle then no fill and capping to ensure no resources are wasted.

Technical Specifications

30 BPM@1000 ml (6 Head Rinsing, 6 Head Filling, 3 Head Capping)

Technical Specifications
No. of Washing Nozzles	6
No. of Filling Valves	6
No. of Capping Heads	3
Length	5.0ft.
Width	5.0 ft.
Height	8.5 ft.
Main Drive Motor	2 HP
Hopper Motor	0.5 HP
Air	1.5 C.F.M AT 40 PSI
Power Consumption	4 HP
Production Output
250 ML		40 BPM
500 ML		40 BPM
1000 ML		30 BPM
2000 ML		10 BPM

40 BPM@1000 ml (8 Head Rinsing, 8 Head Filling, 4 Head Capping)

Technical Specifications
No. of Washing Nozzles	8
No. of Filling Valves	8
No. of Capping Heads	4
Length	6.0ft.
Width	5.0 ft.
Height	8.5 ft.
Main Drive Motor	2.00 HP
Hopper Motor	1 HP
Air	1.5 C.F.M AT 40 PSI
Power Consumption	5 HP
Production Output
250 ML		50 BPM
500 ML		45 BPM
1000 ML		40 BPM
2000 ML		15 BPM

60 BPM@1000 ml (12 Head Rinsing, 12 Head Filling, 4 Head Capping)

Technical Specifications
No. of Washing Nozzles	12
No. of Filling Valves	12
No. of Capping Heads	4
Length	7.5 ft.
Width	6.0 ft.
Height	8.5 ft.
Main Drive Motor	3 HP
Hopper Motor	1 HP
Air	1.5 C.F.M AT 60 PSI
Power Consumption	6 HP
Production Output
250 ML		70 BPM
500 ML		70 BPM
1000 ML		60 BPM
2000 ML		30 BPM

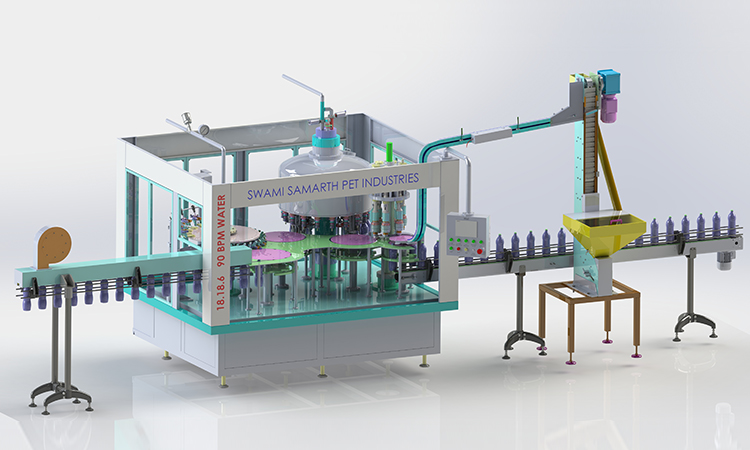

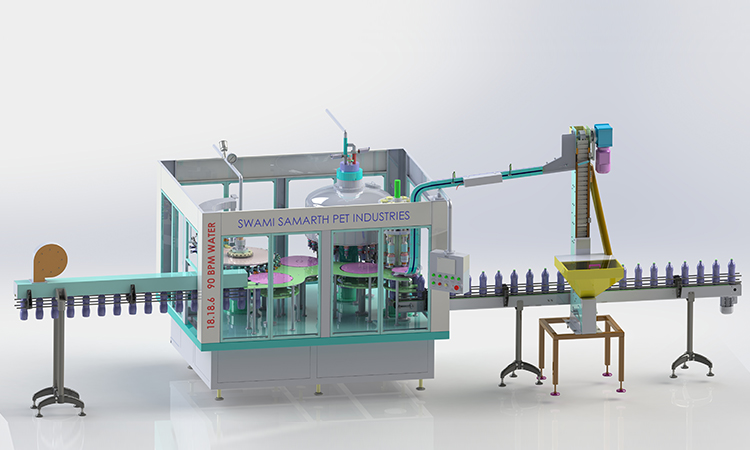

90 BPM@1000 ml (18 Head Rinsing, 18 Head Filling, 6 Head Capping)

Technical Specifications
No. of Washing Nozzles	18
No. of Filling Valves	18
No. of Capping Heads	6
Length	8.0ft.
Width	6.0 ft.
Height	8.5 ft.
Main Drive Motor	5 HP
Hopper Motor	1 HP
Air	1.5 C.F.M AT 60 PSI
Power Consumption	7 HP
Production Output
250 ML		120 BPM
500 ML		120 BPM
1000 ML		90 BPM
2000 ML		50 BPM

120 BPM@1000 ml (22 Head Rinsing, 22 Head Filling, 8 Head Capping)

Technical Specifications
No. of Washing Nozzles	22
No. of Filling Valves	22
No. of Capping Heads	8
Length	8.0 ft.
Width	6.5 ft.
Height	8.5 ft.
Main Drive Motor	7 HP
Hopper Motor	1.5 HP
Air	1.5 C.F.M AT 60 PSI
Power Consumption	10 HP
Production Output
250 ML		140 BPM
500 ML		140 BPM
1000 ML		120 BPM
2000 ML		60 BPM

150 BPM@1000 ml (24 Head Rinsing, 24 Head Filling, 8 Head Capping)

Technical Specifications
No. of Washing Nozzles	24
No. of Filling Valves	24
No. of Capping Heads	8
Length	12 ft.
Width	8.0 ft.
Height	8.5 ft.
Main Drive Motor	7 HP
Hopper Motor	1.5 HP
Air	1.5 C.F.M AT 60 PSI
Power Consumption	10 HP
Production Output
250 ML		180 BPM
500 ML		180 BPM
1000 ML		150 BPM
2000 ML		75 BPM

200 BPM@1000 ml (40 Head Rinsing, 40 Head Filling, 10 Head Capping)

Technical Specifications
No. of Washing Nozzles	40
No. of Filling Valves	40
No. of Capping Heads	10
Length	13 ft.
Width	12 ft.
Height	8.5 ft.
Main Drive Motor	7.5 HP
Hopper Motor	1.5 HP
Air	1.5 C.F.M AT 60 PSI
Power Consumption	12 HP
Production Output
250 ML		220 BPM
500 ML		220 BPM
1000 ML		200 BPM
2000 ML		100 BPM

250 BPM@1000 ml (30 Head Rinsing, 50 Head Filling, 12 Head Capping)

Technical Specifications
No. of Washing Nozzles	30
No. of Filling Valves	50
No. of Capping Heads	12
Length	14.0 ft.
Width	9.0 ft.
Height	8.5 ft.
Main Drive Motor	HP
Hopper Motor	1.5 HP
Air	1.5 C.F.M AT 60 PSI
Power Consumption	13 HP
Production Output
250 ML		270 BPM
500 ML		270 BPM
1000 ML		250 BPM
2000 ML		120 BPM
