• Compact design for space saving.
• High quality cylinders and valves for Opening Closing and Blowing operation.
• Machine maintenance, testing and production have manual and auto mode.
• Branded parts are used to enhance machine life.
• Low pressure, system pressure, High Pressure.
• One operator one machine.
• Cooling system for neck cooling, mould cooling.
Technical Specifications |
---|
Machine Model | SSPI-SA2CPB | SSPI-SA2CPB | SSPI-SA4CPB |
Machine Type | Semi-Automatic ( Regular ) | Semi-Automatic ( Autodrop ) |
Semi-Automatic ( Autodrop ) |
No.Of Cavity |
Two |
Two |
Four |
Capacity |
30ml To 2000ml |
30ml To 2000ml |
30ml To 2000ml |
Production |
1200BPH |
1200BPH |
1800BPH |
Max. Container Volume |
2000ml |
2000ml |
2000 ml |
Max. Neck Diameter |
25-50 |
25-50 |
25-50 |
Maximum mould thickness- |
150mm |
150mm |
150mm |
Minimum mould thickness - |
140mm | 140mm |
140mm |
Stretching Stroke Max |
400 |
400 |
450 mm |
Air Compressor ( Blowing) |
20 HP |
20 HP |
40 HP |
Ref Air Dryer Filtration Systems | 54 CFM | 54 CFM |
110 CFM |
Water Chiller |
2 TR |
2 TR |
3 TR |
(Other specifications available on request) |
Machine Model |
SSPI-SA5LJPB |
|
Machine Type |
Semi-Automatic |
|
Max Blowing Pressure |
30 kg/cm2 |
|
Total Weight (Approx) | 1500 kg |
|
|
Two Cavity |
Single Cavity |
Production | 800-900 Bottles/Hour | 300 Jars/Hour (83 mm neck, 2 litres) |
(1 litre Water Bottle) |
||
Max Neck Size | 53 mm |
120 mm |
Max Product Diameter |
130 mm |
200 mm |
Max Product Volume |
2 litres |
5 litres |
Compressed Air |
|
|
System Air |
7 CFM |
|
Total Connected Load |
16 kW |
|
|
(Other specifications available on request) |
Machine Model |
SSPI-PB10LJ |
Machine Type |
Semi-Automatic |
Cacity |
Single Cavity |
Capacity |
100ml to 10000ml, Neck dia. 28mm to 120 mm suitable for 35 Bar Air. |
Production |
100 ml & 10000 ml – 280JPH-8000ml. AND 800BPH- 1000ml |
Max. Container Volume |
10000 ml |
Max. Neck Diameter |
120 mm |
Number of Heating Zones |
16 (720 mm x 2 Heating Module) |
Operating Pressure |
8 kg/CM² |
High Pressure Consuming |
52 CFM |
Operating Pressure |
4 KG/CM² |
Temperature |
10-11ºC |
Capacity |
2 TR |
Total Connected Load | 20 KW |
(Other specifications available on request) |

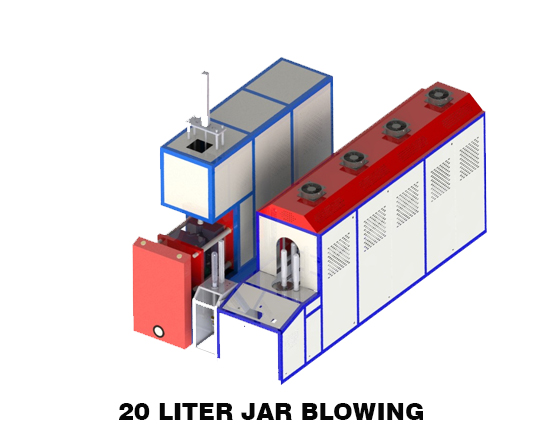

Machine Model |
SSPI-PB20LJ |
Machine Type |
Semi-Automatic |
Cacity |
Single Cavity |
Capacity |
5ltr to 20ltr, |
Production |
80 to 100 jars per hours of 20 liters |
Max. Container Volume |
20000 ml |
Max. Neck Diameter |
Neck dia. 46mm to 120 mm |
Clamping Force |
20 ton |
Number of Heating Zones |
28 |
Operating Pressure |
8 Bar |
Blowing Pressure |
25 Bar max. |
Stretching Stroke Max. |
500 mm |
Chiller |
2 TR |
Compressor |
20 Hp |
(Other specifications available on request) |
