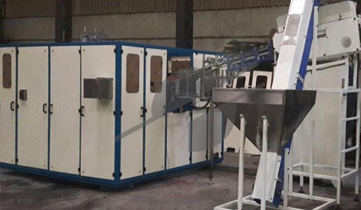

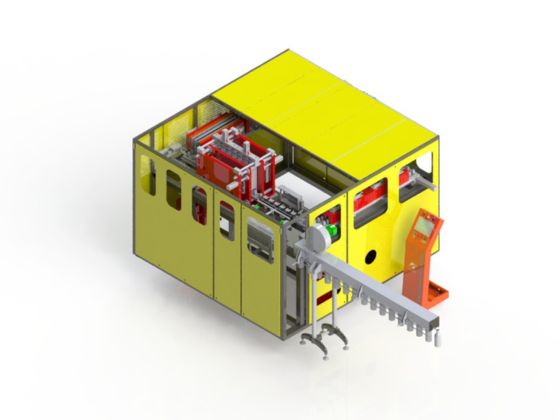

Fully Automatic Blowing Machine

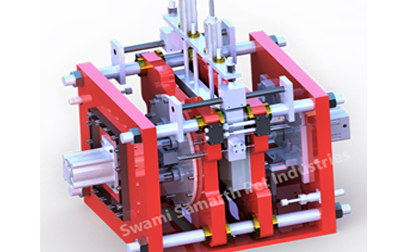

• Compact design for space saving and given wedgelock system for mould locking at the time of blowing.
• Specially developed ejector and loading arms
• High quality cylinders and valves for Opening Closing and Blowing operation.
• In built self-diagnostic function will display faulty areas with causes and remedies to ensure hassle free production.
• High sensitive sensors are provided for Operation of machine.
• Cooling system for neck cooling, mould cooling and oil cooling.
• For Neck Protection of Preform continuous chilled water is in flow which avoids Neck Deformation.

Technical Specifications

2 CAVITY (PNEUMATIC) 3600 – 3800 BPH
Machine Model	SSPI/2CFAPB
Number of Cavity	2 Cavity
Bottle Output	3600 – 3800 BPH
Container Volume	200 ml to 2 Ltr
Max Bottle Diameter / Bottle Height	110 mm / 350 mm
Max Preform Neck Diameter / Preform Height	25-38 mm
Total Power Connected Load ( 1 LTR )	28 Kw
Actual Power Consumption ( 1 LTR )	16 Kw
Voltage Stabilizer Requirement	50 KVA ( 425 V 3 , 50 Hz )
Low Pressure Compressor Requirement	Not Required
High Pressure Compressor requirement	115 – 120 CFM @28-30 BAR
Water Chiller Requirement ( 100 LPM @ 3BAR)	3 TR ( 8 – 10°c )
Machine Dimension	( 9.5 x 5.5 x 7 ) ( L x W x H )
With Loader	( 18 x 10 x 13 ) ( L x W x H )

4 CAVITY (PNEUMATIC) / 7200 BPH
Machine Model	SSPI/4CFAPB
Number of Cavity	4 Cavity ( Upto 1 ltr ) / ( 2 Cavity 2 Ltr )
Bottle Output	7200 BPH
Container Volume	200 ml to 1 Ltr/ 2 Litr ( Option )
Max Bottle Diameter / Bottle Height	80 mm / 280 mm ( 350mm)
Max Preform Neck Diameter / Preform Height	25-30 mm/ 145 mm
Total Power Connected Load ( 1 LTR )	100 Kw
Actual Power Consumption ( 1 LTR )	70 Kw
Voltage Stabilizer Requirement	100 KVA ( 415 V 3 , 50 Hz )
Low Pressure Compressor Requirement	Not Required
High Pressure Compressor requirement	230 CFM @28-30 BAR
Water Chiller Requirement ( 100 LPM @ 3BAR)	5 TR ( 8 – 10°c )
Machine Dimension	( 8 x 10 x 6 ) ( L x W x H )
With Loader	( 17 x 15 x 13 ) ( L x W x H )

6 CAVITY (PNEUMATIC) / 9600 BPH
Machine Model	SSPI/6CFAPB
Number of Cavity	6 Cavity ( Upto 1 Ltr )
Bottle Output	9600 BPH
Container Volume	200 ml to 1 Ltr/ 2 Litr ( Option )
Max Bottle Diameter / Bottle Height	85 mm / 280 mm
Max Preform Neck Diameter / Preform Height	25-30 mm / 145 mm
Total Power Connected Load ( 1 LTR )	150 Kw
Actual Power Consumption ( 1 LTR )	120 Kw
Voltage Stabilizer Requirement	150 KVA ( 415 V 3, 50 Hz )
Low Pressure Compressor Requirement	Not Required
High Pressure Compressor requirement	290 CFM @28-30 BAR
Water Chiller Requirement ( 100 LPM @ 3BAR)	8.5 - 9 TR ( 8 – 10°c )
Machine Dimension	( 10 x 13 x 7 ) ( L x W x H )
With Loader	( 18 x 18 x 13 ) ( L x W x H )

8 CAVITY (PNEUMATIC) 12000 BPH
Machine Model	SSPI/8CFAPB
Mould Clamp		Servo
Stretching Type		Servo
No. of Cavity	No	8
Production Per Hour	BPH	12000
Nominal Bottle Volume	ml	600
Max Bottle Dia	mm	76.5
Max Bottle Height	mm	350
Max Neck Dia	mm	28
H.P. Air CFM Calculated at	CFM	250(500 ml @ 32 Bar)
L.P. Air CFM @ 8 bar(without Air Recovery)	CFM	30
L.P. Air (CFM afterAir Recovery)	CFM	Not Required
Electrical Requirement
Connected LoadWithout Utility	Kw	88
Heating Load	Kw	60
Machine Dimensions
Length	Mm	8800
Width	Mm	3050
Height	mm	3300

12 CAVITY (PNEUMATIC) 18000 BPH
Machine Model	SSPI/12CFAPB
Mould Clamp		Servo
Stretching Type		Servo
No. of Cavity	No	12
Production Per Hour	BPH	18000
Nominal Bottle Volume	ml	600
Max Bottle Dia	mm	76.5
Max Bottle Height	mm	350
Max Neck Dia	mm	28
H.P. Air CFMCalculated at	CFM	306(500 ml @ 32 Bar)
L.P. Air CFM @ 8 bar(without Air Recovery)	CFM	39
L.P. Air (CFM afterAir Recovery)	CFM	Not Required
Electrical Requirement
Connected LoadWithout Utility	Kw	102
Heating Load	Kw	72
Machine Dimensions
Length	mm	10150
Width	mm	3050
Height	mm	3300
